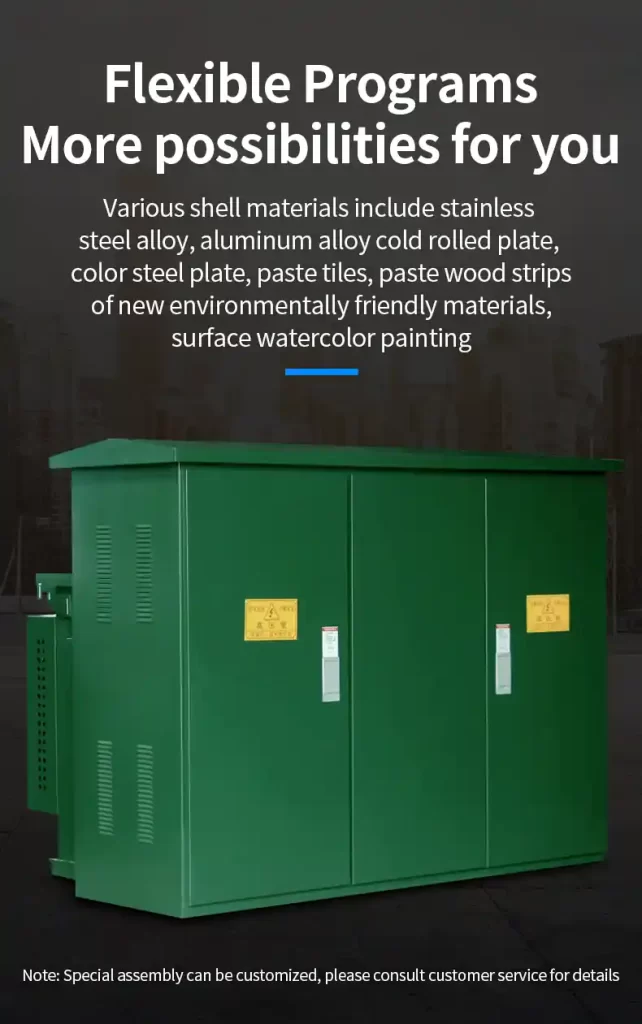

The American Style Compact Substation is a high-performance, integrated electrical distribution unit designed to deliver reliable power transformation in space-constrained urban and industrial environments. With superior engineering and compliance with international standards, this substation is ideal for utility, renewable energy, and infrastructure projects across North America and globally. This guide explores its features, specifications, and why it’s a top choice for modern power systems.
Why Choose an American Style Compact Substation?
This compact unit combines a high-voltage switchgear, transformer, and low-voltage distribution system into a single, sealed enclosure. Its design prioritizes safety, minimizes footprint, and simplifies installation. Built to withstand challenging environmental conditions, it offers robust protection and excellent thermal performance.
“Compact substations are increasingly favored in distributed energy networks and smart grids for their adaptability and rapid deployment.”
— IEEE Std C37.20.2-2013
Key Features of American Style Compact Substations
- Fully Enclosed, Oil-Immersed Transformer: Ensures durability and efficient cooling.
- Optimized for Indoor and Outdoor Use: Versatile for various environments.
- Excellent Arc Protection: Enhances safety with superior short-circuit handling.
- Low Noise Operation: Operates at ≤50 dB, ideal for urban settings.
- Wide Temperature Range: Reliable from -35°C to +40°C.
Technical Specifications
Here are the key technical details for the American Style Compact Substation:
| Parameter | Specification |
|---|
| Rated Voltage | 10/0.4kV (HV/LV) |
| Maximum Working Voltage | 12kV (High Side) |
| Rated Capacity | 50-1600KVA |
| Withstand Voltage (1-Min) | 35kV |
| Impulse Voltage | 75kV |
| Backup Fuse Opening Current | 50kA |
| Insertion Fuse Opening Current | 2.5kA |
| Cooling Method | Oil Immersion Self-Cooling |
| Protection Level | IP43 |
| Noise Level | ≤50 dB |
| Operating Temperature | -35°C ~ +40°C |
Applications of American Style Compact Substations
These substations are versatile and well-suited for:
- Industrial Manufacturing Zones: Powers heavy machinery and production lines.
- Shopping Centers and Commercial Buildings: Ensures uninterrupted power for businesses.
- Rail and Airport Substations: Supports critical transportation infrastructure.
- Wind/Solar Hybrid Power Systems: Integrates renewable energy seamlessly.
- Temporary Power Distribution: Ideal for construction sites and mining operations.
“Compact substations play a critical role in the decentralization of power systems by providing safer and scalable medium-voltage transformation for industrial and municipal zones.”
— CIGRÉ Technical Brochure No. 837: Compact Substation Solutions
Why Choose PINEELE’s American Style Compact Substation?
PINEELE’s substations stand out for their quality and innovation:
- Cutting-Edge Manufacturing: Precision-built for reliability and efficiency.
- Global Compliance: Meets international standards for safety and performance.
- Custom Solutions: Tailored to meet specific project requirements.
- Expert Support: Backed by a team of experienced engineers.
The American Style Compact Substation is a reliable, efficient, and space-saving solution for modern power distribution needs. Whether upgrading existing systems or designing new infrastructure, PINEELE’s substations ensure optimal performance and peace of mind.
